Shobu Zukuri - "Ayame" 9260 Spring Steel

Name "Ayame"
Blade 9260 Silicon Alloy Carbon Spring Steel.
Overall Length (+ Saya) 42.5"
Treatment Full Hand Forged, Through Tempered, Oil Quenched, Hand Polished
Finish Tameshigiri Polish
Blade Dimension 28" Length, 0.3" Width, 1.25" Height
Sori (Curvature) 0.7"
Weight 2 lbs 9 oz
Tsuba/Fuchi/Kashira Cast iron tsuba with alloy fittings.
Balance Point 5.5" to 6" above tsuba
Tsuka/Ho 10.5" Wood
Tsuka Ito Brown Cotton
Mekugi 1 X Bamboo, 1 X Brass (Double Pinned)
Same Black colored Real Ray Skin Panel Wrap
Saya 30.5" Black Glossy Lacquered Medium Hardwood

There are many pictures and may take some time to load - Please be patient

This is our preferred varient of the Shobu Zukuri katana. Shobu Zukuri refers to the shape of the blade. The word "Shobu" means Iris, and "Zukuri" mean made or constructed. This type of sword is so named because of the resemblence with the leaf of an iris plant.

The name of this sword "Ayame" literally translates to "Iris" for this reason.

Technically, one of the features on a Shobu Zukuri katana is to have the shinogi (ridge line on the sides of the blade) run the entire length of the sword. No yokote or kissaki.

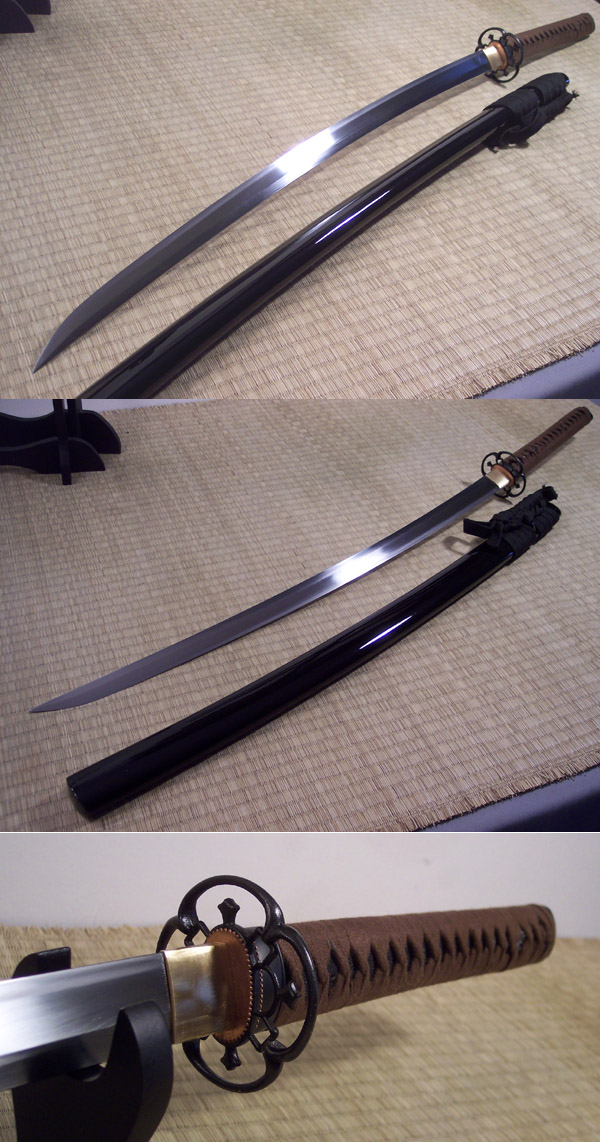

Below are photos showing the overall apparence of the sword.

Note that because the mune (spine), Ha (edge) and shinogi (ridge) comes together into one single point, the tip of this sword is "needle-like". This geometry makes it easy to penetrate soft targets in a tsuki, but because of the lack of verticle support structure, it is also more delicate.

The cutting ability of the blade body at the mune machi is the same as other katanas otherwise.

The tsuka is wrapped with a black same panel wrap, and a brown cotton ito wrap. The tsuba is a rounded cast iron tsuba and is much more refined than our previous tsubas.

This configuration of the tip is very rarely seen in any production shobu zukuri, let alone katanas.

As far as we know, we are the first and only production maker that uses this geometry.

9260 Shobu-Zukuri Katana "Ayami" (Iris)

Sale Price: $279.99
Regular Price: $499.99

Constructed of the 9260TH spring steel, this Shobu-Zukuri katana is our preferred variant. The shinogi (ridgeline) of this sword runs the entire length of the blade... all the way to the very tip. This configuration results in a needle-like tip where the mune-shinogi-ha comes together to a singular point, facilitating penetration of soft targets.

(Tsuba mismatch version denotes Ayame blade mounted with Kurome tsuba. This version will be shipped with an additional Ayame tsuba).

Ayami - 9260 Shobu Zukuri
Sold Out - Production halted due to Covid lockdown. No ETA.
Ayami (tsuba mismatch)- 9260 Shobu Zukuri
Sold Out
